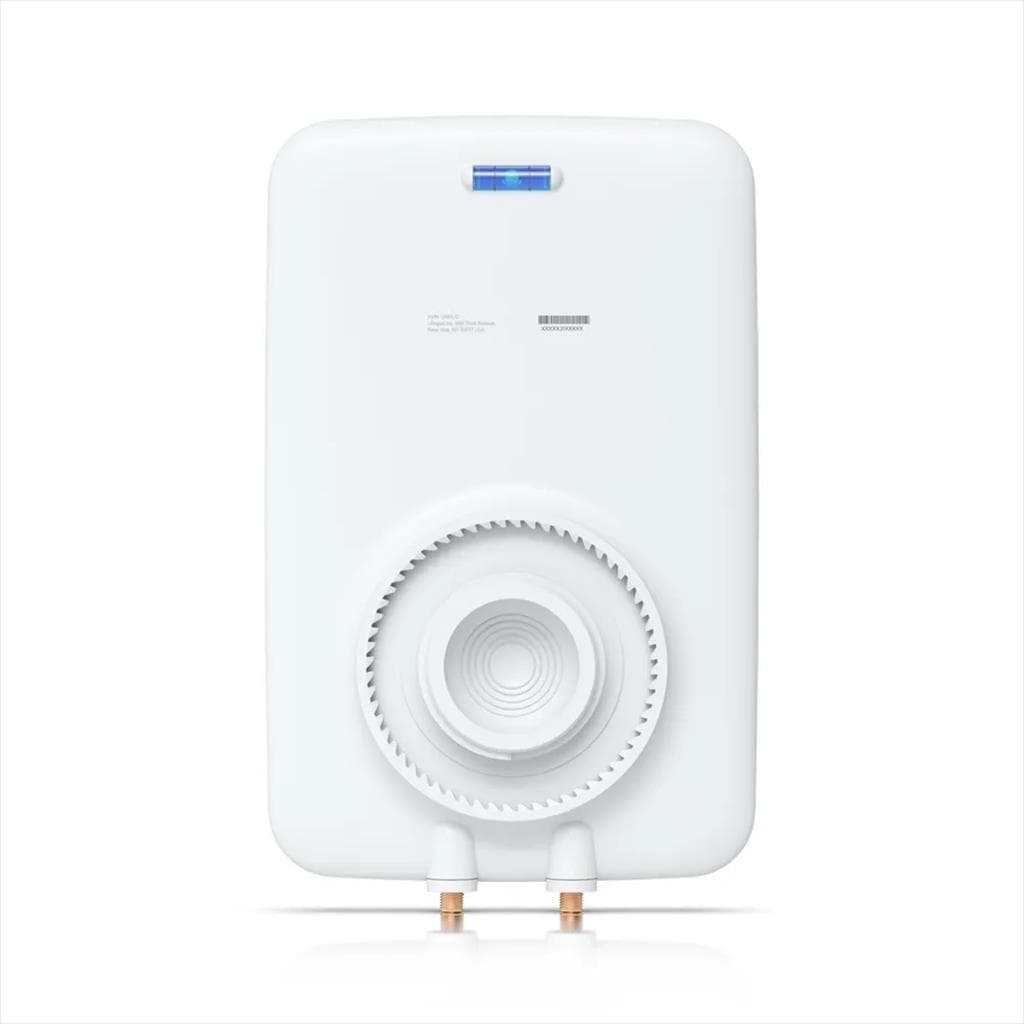

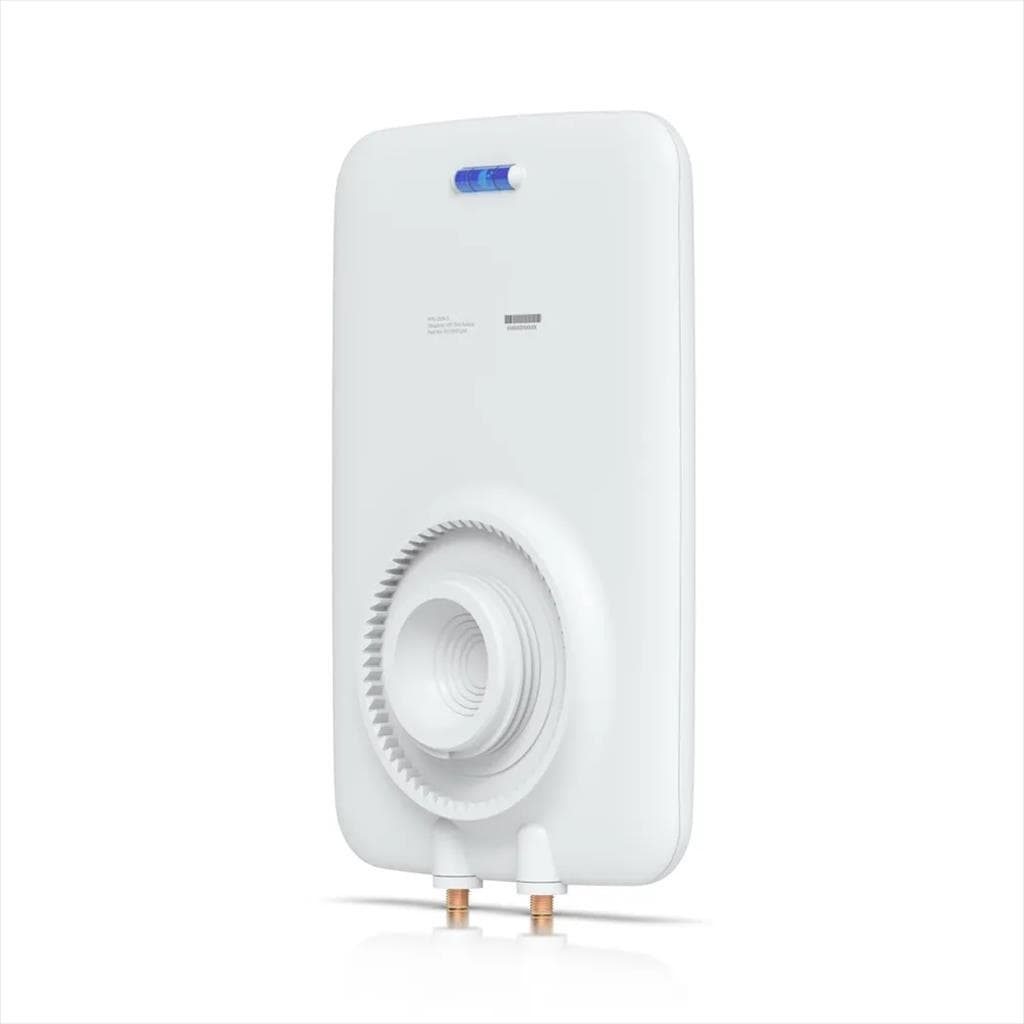

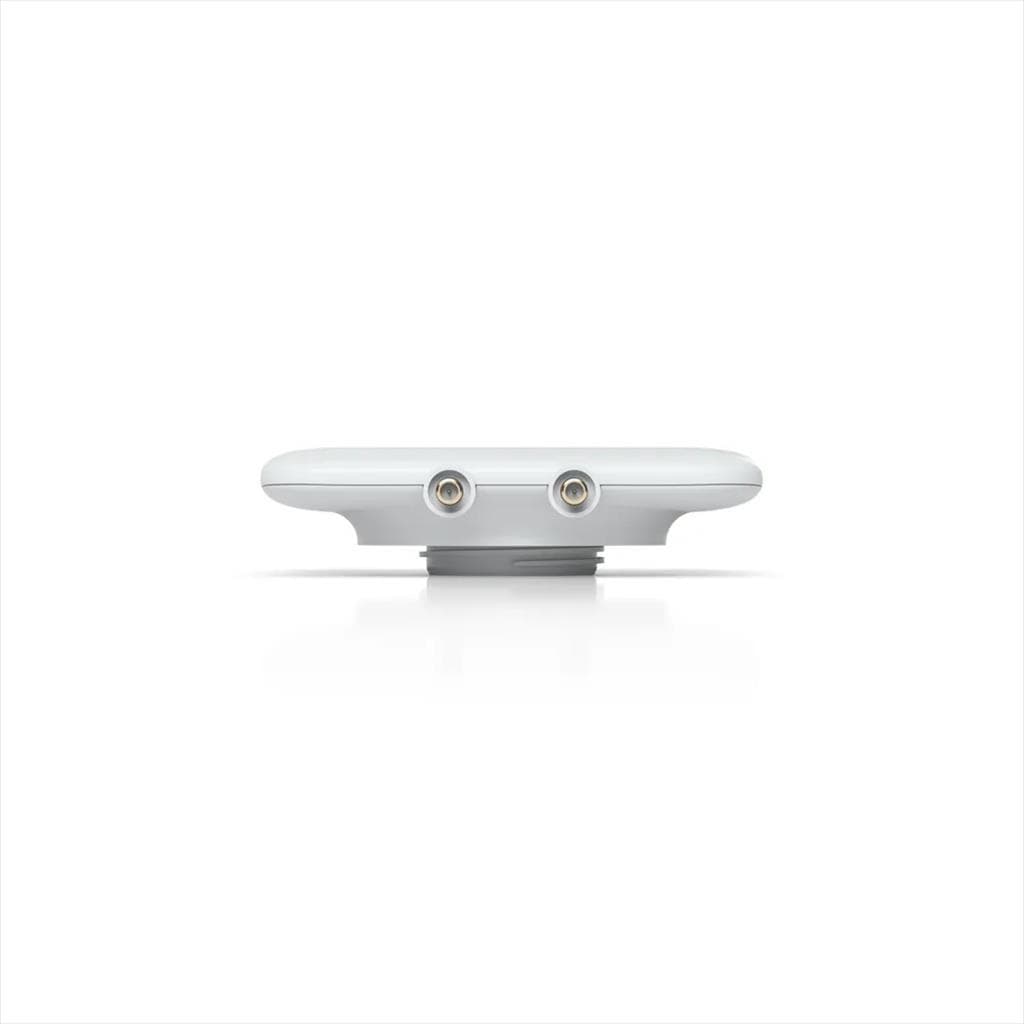

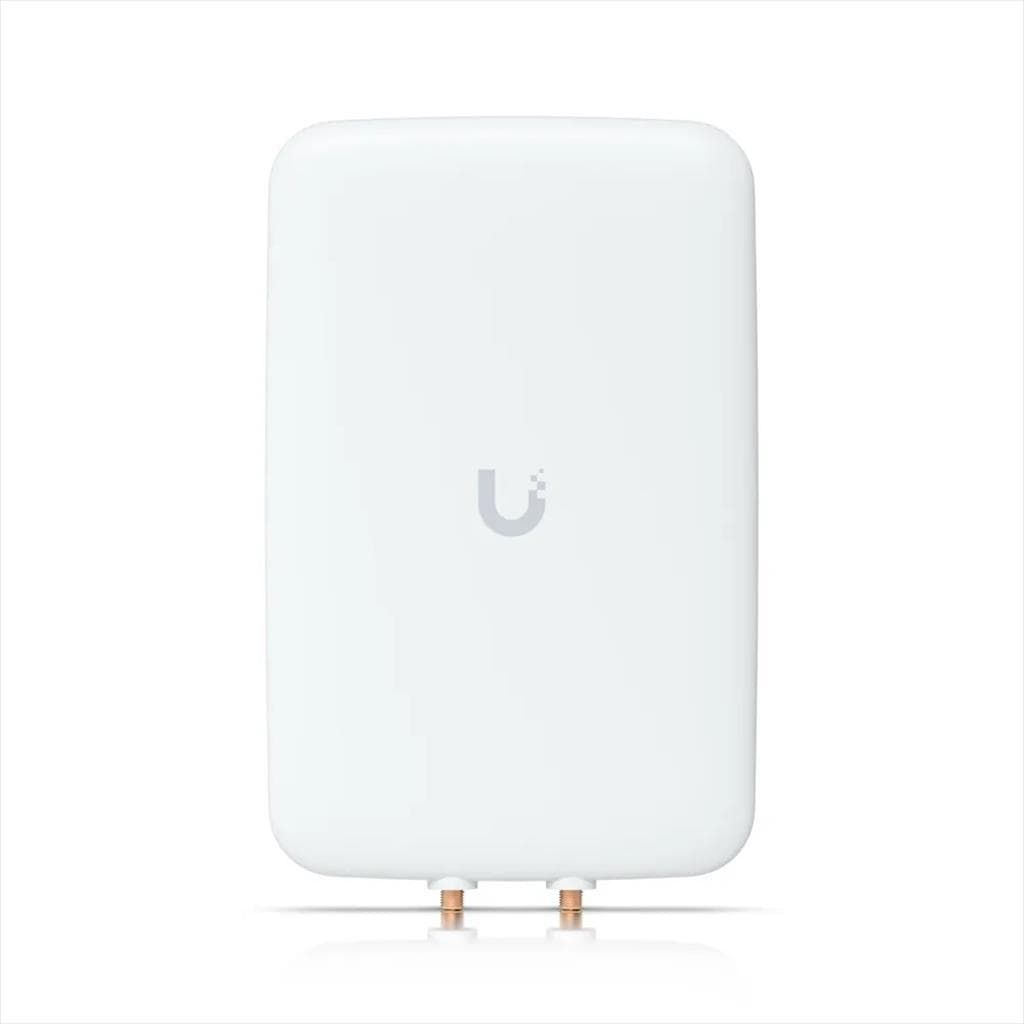

NET DIRECTIONAL DUAL-BAND ANTENNA FOR ACCESS POINT MESH UBIQUITI UAP-AC-M

Опис

Model name: UBIQUITI DIRECTIONAL DUAL-BAND ANTENNA Specifications: Mechanical Dimensions: 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3") Weight: Without mount: 400 g (0.9 lb), With mount: 480 g (1.1 lb) Enclosure material: Outdoor UV-stabilized plastic Hardware Supported frequency range: 2.4–2.5 GHz, 5.1–5.9 GHz RF Connections: (2) RP-SMA Gain: 2.4 GHz: 10 dBi 5 GHz: 15 dBi HPOL beamwidth: 2.4 GHz: 90° 5 GHz: 45° VPOL beamwidth: 2.4 GHz: 90° 5 GHz: 45° Elevation beamwidth: 2.4 GHz: 90° 5 GHz: 45° Max VSWR: 2:1 Polarization: Dual-linear Cross-pol isolation: 2.4 GHz: 25 dB 5 GHz: 30 dB NDAA Compliant: Yes
